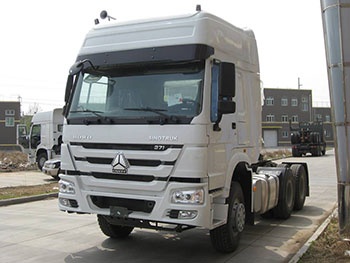

SINOTRUK HOWO 6x4 Tractor head/Truck head |
||||
Truck Model |
ZZ4257S3241V |
|||
Drive mode |
6x4 |
|||
Truck Brand |
SINOTRUK-HOWO |
|||
Dimension(Lx W xH)(mm) |
6800x2496x3668 |
|||
Approaching angle/Departure angle(°) |
16/70 |
|||
Overhang(front/rear) (mm) |
1500/725 |
|||
Wheel base (mm) |
3200+1400 |
|||
Max speed(km/h) |
90, 102 |
|||
Curb weight(kg) |
9210 |
|||
Gross Vehicle Weight(kg) |
25000 |
|||
Engine
|
Model |
WD615.47,water-cooled,four strokes,6 cylinders in line with water cooling,turbocharged and intercooling, directly injection |
||
Fuel type |
Diesel |
|||
Horsepower |
371HP |
|||
Emission Standard |
Euro 2 |
|||
Fuel tank capacity |
400L |
|||
Transmission |
Model |
HW19710, 10forwards & 2reverse |
||
Brake system
|
Service brake |
Dual circuit compressed air brake |
||
Parking brake |
spring energy, compressed air operating on rear wheels |
|||
Auxiliary brake |
engine exhaust valve brake |
|||
Steering system |
Model |
8198,hydraulic system with power assistance |
||
Front axle |
HF7 |
|||
Rear axle |
ST16 |
|||
Tyre |
295/80R22.5 or 12R22.5. 11pcs(10+1spare) |
|||
Clutch |
Ø430 diaphragm spring clutch,hydraulic control air power assisted |
|||
Electrical system
|
Battery |
2X12V/165Ah |
||
Alternator |
28V-1500kw |
|||
Starter |
7.5Kw/24V |
|||
Cab |
HW79 cabin, two beds, with air-condition. all-steel forward control,55ºhydraulically tiltable to the front, 2- arm windscreen wiper system with three speeds, laminated windscreen with casted-in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, with heating and ventilating system, outer sun visor, adjustable roof flap, with stereo radio/cassette recorder, safety belts and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbers |
