  • howo 70t mining dump truck
Product name : howo 70t mining dump truck
Product No. : ZZ5707S3840AJ
1 : Horse power - 371
2 : Drive Model - 6x4
3 : Payload -70t
4 : Cargo Box Size -5900*3100*1800mm
5 : Tires-14.00-25(36PR)
             [Next Product]→
Details:

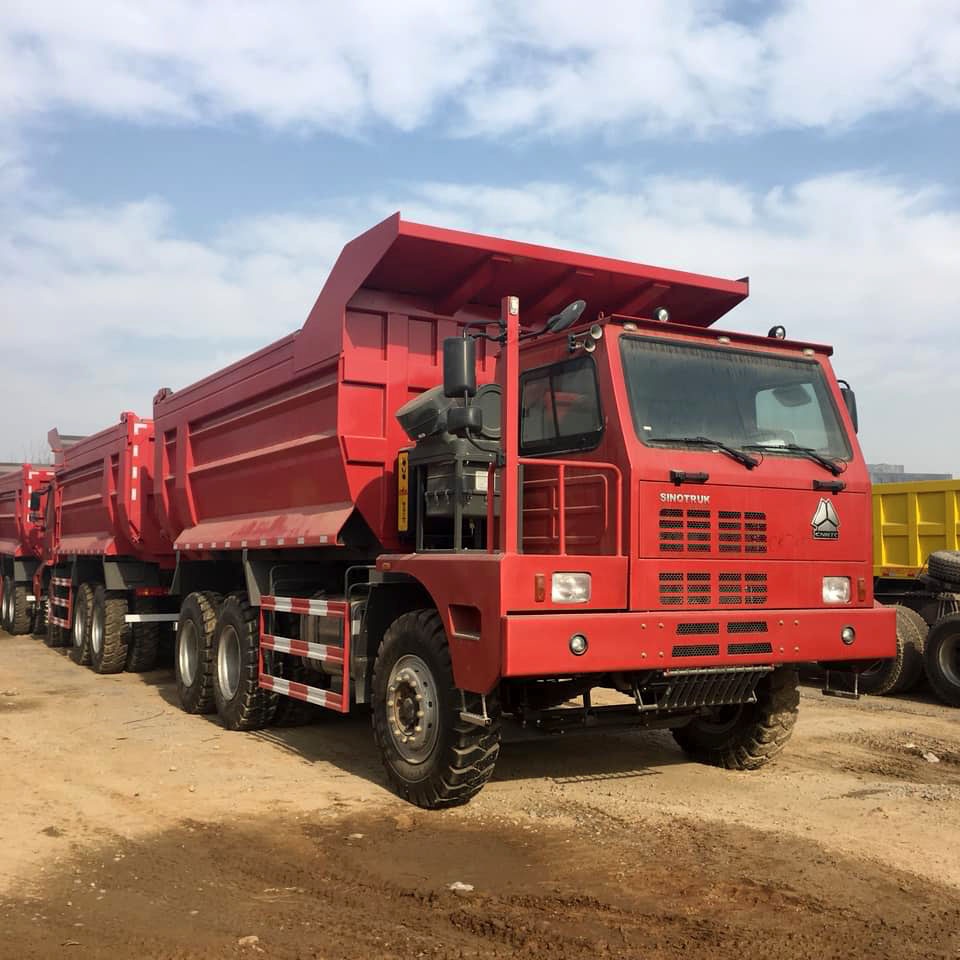

 howo 70t mining dump truck

Truck Model



ZZ5707S3840AJ

Truck Brand



SINOTRUK--HOWO MINE DUMP TRUCK

Driving Style

Left hand driving

Dimension(L*W*H)(mm)

8460*3200*3475

Cargo body size (L*W*H, mm)



5900*3100*1800 32.92m3

Cargo thickness(mm)



Bottom:14mm, Side:12mm,rear door: 12mm

Cargo material



Manganese plate

Wheelbase

3800+1350



Approaching/Departure Angle(°)



29/35.5

Curb weight(kg)

20000

Loading Weight(kg)



80000



Engine


Model



WD615.47, water-cooled,four strokes,6 cylinders in line with water cooling,turbocharged and inter cooling, directly injection



Fuel type

Diesel





Horse Power, max(kw/rpm)



371HP





Emission



EUROII

Fuel tanker capacity(L)

500

Clutch

430 diaphragm spring clutch Type A, hydraulic air booster

Transmission



Model



HW19710   10 forwards and 2 reverse



Brake system


Service brake

Dual circuit compressed air brake



Parking brake

spring energy, compressed air operating on rear wheels



Auxiliary brake

Engine exhaust brake

Steering system

Model



ZF8098hydraulic steering with power assistance



Front axle



HF12



Rear axle



AC26reinforced wide cast steel, dual reduction, double tires drive axle(10.24)

Min. Ground Clearance

380mm( Front Axle)

Clutch

430diaphragm spring clutch A-type, hydraulic control and gas assistant

Color

Like picture

Tyre



14.00-25 big size mining use special tire
10PCS with one spare tire

Electrical system

Battery

2X12V/165Ah



Alternator

28V-1500kw



Starter

7.5Kw/24V

Cab



HW7D cab, (with air-condition), Unilateral cab
skeletal skin-covered large surface strengthened special cabin, with large area of windshield glass, movable glass of the left door, visible sliding right window, HOWO instrument desk, air conditioner, heating system, adjustable seat, two-speed wiper and glass washer, sun visor, safety belts, view mirrors right and left, up and down road view mirrors, front shock absorber, rear spring coil diaphragm shock absorber on both sides, double hydraulic lock, which can turn forward with 50, with commode handle and footstep on the right platform
