1)severall kinds of cargo body structure , make it light weight , high rigidity , high loading
capacity
2)adopt the high strength steel, make it has a long service life
3)The imported hydraulic control system helps to avoid wrong operation, it has higher
4)excellant apperance of cabin, safety, reliable
Truck Type |

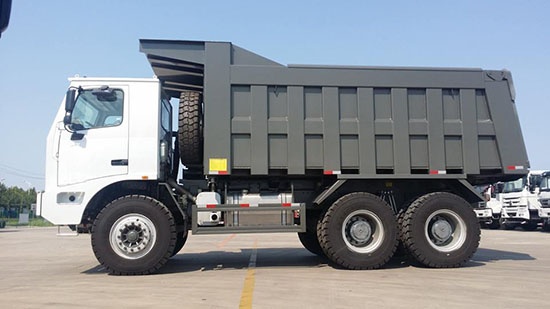

70 ton mine dump truck |
||||
Truck Model |
ZZ5707S3840AJ |
||||
Truck Brand |
SINOTRUK—HOWO |
||||
Driving Type |
Left Hand Driving |
||||
Dimension(Lx W x H)(unloaded)(mm) |
9045x3200x3770 |
||||
Cargo body size (L*W*H, mm) (mm) |
5800*3100*1700 30.56m3 |
||||
Cargo body Thickness(mm) |
bottom:12mm, side:10mm |
||||
Lifting System |
front side lifting |
||||
Approaching angle/Departure angle(°) |
32/40 |
||||
Overhang(front/rear) (mm) |
1500/1800 |
||||
Wheel base (mm) |
3800+1500 |
||||
Max speed(km/h |
50 |
||||
Curb weight(kg) |
23000 |
||||
Loading Weight(kg) |
70000 |
||||
Engine
|
Model |
WD615,water-cooled,four strokes,6 cylinders in line with water cooling,turbocharged and inter cooling, directly injection |
|||
Fuel type |
Diesel |
||||
Horse Power |
371HP |
||||
Fuel tanker capacity (L) |
500 |
||||
Clutch |
Single-plate dry clutch Φ430mm |
||||
Transmission |
Model |
HW |
|||
Brake system
|
Service brake |
Dual circuit compressed air brake |
|||
Parking brake |
spring energy, compressed air operating on rear wheels |
||||
Auxlary brake |
engine exhaust valve brake |
||||
Steering system |
Model |
ZF8098, hydraulic steering with power assistance |
|||
Front axle |
HF12 |
||||
Rear axle |
AC26 |
||||
Color |
Optional |
||||
Tire |
14.00-2536 level 10PCS with one spare tire |
||||
Electrical system
|
Battery |
2X12V/165Ah |
|||
Alternator |
28V-1500w |
||||
Starter |
7.5Kw/24V |
||||
Cab |
HW7D cab, (with air-condition), Unilateral cab |
