  • SINOTRUK HOWO 50T 371HP HEAVY MINING DUMP TRUCK
Product name : SINOTRUK HOWO 50T 371HP HEAVY MINING DUMP TRUCK
Product No. : ZZ5507S3840AJ
Horse power  :
Drive Model : 6x4
Payload : 50t
Cargo Box Size : 5800*2800*1500mm
Tires : 1300R25
←[Previous Product]              [Next Product]→
Details:

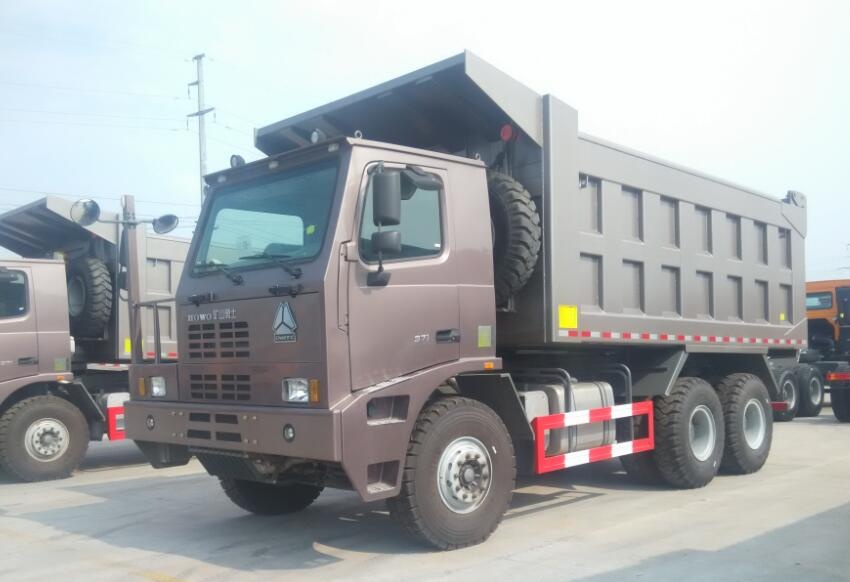

  SINOTRUK HOWO 50T 371HP HEAVY MINING DUMP TRUCK


SINOTRUK HOWO 50T 371HP MINING DUMP TRUCK
MAIN SPECIFICATION
Description SINOTRUK HOWO 50T 371HP MINING DUMP TRUCK
Model ZZ5507S3840AJ
Engine Power 371Hp
Dump Body Dimension 5800*2800*1500(26.97m3)
Loading Capacity 30,000Kgs
Place of Origin China
DETAIL SPECIFICATION
Weight Dead weight(kg) 22000
Max. Theoretical Loading Weight(kg) 30000
Max. Theoretical G.V.W(kg) 50000
Performance Min. Turning Diameter(m) 22
Max. Speed(km/h) 50
Fuel Tank Capacity(L) 500
Transmission Model HW19710
Forward Ratio 14.28, 10.62, 8.87, 5.88, 4.38, 3.27, 1.80, 1.34, 1.00
Reverse Ratio 13.91  3.18
Driving axle Model AC16, Central reduction with hub reduction
Rotio 6.73
Differential Locks Exist between wheels and axles
Body(Tilting End) Dimension(L*W*H mm) 5800*2800*1500
Thickness(Floor*Side mm) 16*10
Hoist System HYVA 196

Dimension Overall dimension(mm) 8634*3000*3570
Wheelbase(mm) 3800+1500
Min. ground clearence(mm) 340
Approach/Departure angle(°) 30/40
Engine Model WD615.47
Displacement(L) 9.726
Rated power kw(r/min) 273/2200
Max. torque Nm(r/min) 1500/1100~1600
Cabin Type HW7D
Nos of passengers 1 person
Clutch Type Diaphragm spring clutch, hydraulic operating with air assitance
Outside diameter of driven plate Φ430(mm)
Steering Model ZF8118
Brake Service brake Dual circuit compressed air brake
Parking brake (emergency brake) Spring energy, compressed air operating
Auxiliary brake Engine exhaust valve brake
Others Brake heat sink
Electrics Operating voltage 24 V, negative grounded
Alternator 1500w
Battery voltage/capacitance(V/Ah) 2X12/180
Tyre Model 13.00-25(13.00R25, 14.00R20 for option)
Rim 8.5-25
