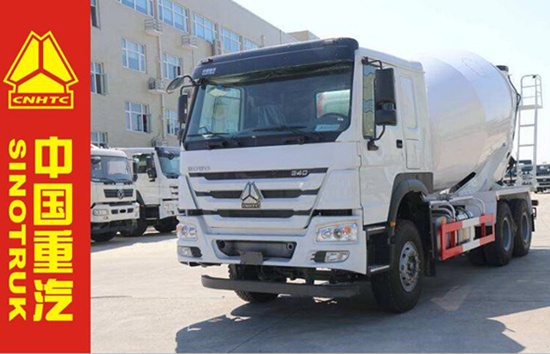

1. howo mixer truck specification
Overall parameter |
|
Overall dimension |
9250x2500x3800mm |
Kerb weight |
13900kg |
Mixing Drum parameter |
|
Mixing drum material |
High quality wear-resistance steel |
Model:Q345 |
|
Drum body thickness: 5mm, End cover thickness:6mm |
|
Charging rate |
≥3 m3/min |
Top feed hopper dimension |
≥650 mm |
Discharging rate |
≥2 m3/min |
Residual rate |
≤0.5% |
Water supply |
Baric water supply system |
Water tank capacity |
450L |
Radiator |
18L |
Reduction gear |
ZF P 4300 Reducer, Germany brand |
Hydraulic pump |
PMH P90, Italy Brand |
Hydraulic motor |
PMH M90, Italy brand |
Accessory |
Tool box |
Chassis parameter |
|
Chassis Brand |
SINO Truck |
Axle base |
3825+1350 |
Transmission(Gear box) |
HW19710 |
Front axle |
Drum type |
Rear axle |
HC16 Driving axle |
Tyre |
12.00R20(10+1) |
Cab type |
HW 76 (with air-conditioner) |
2. Howo concrete mixer truck working principle
Howo 6x4 9m3 concrete mixer truck working principle of the concrete mixing truck is taking the power from the car engine by power takeoff device. Take the role of the power plant is by manipulating the power switch to the remove of engine power, hydraulic system driven by mixing barrel, mixing barrel racing to the rotation during feeding and transportation, to facilitate feeding and mixing of concrete, reverse rotation during discharging, cut off after work end connected to the engine's power.
3. Main Features
1.Control system
Adopt three-point control mode, by control bar on both rear sides and in-cab device to control the drum easily and conveniently.
2.Hydraulic driving system
Adopt international top brand in hydraulic driving filed, such as Germany, Italian, American brand with integral structure ,excellent performance, to meet customers’ various special need.
3.Water supply system
Have various volume water tanker, can feed the water mixing and cleaning, enlarged water pipe and various feeding solution. Can convenient customer, water feeding solution can use air pressure ,reducer pump ,electronic pump, etc, can meet different requirement.4.Blade anti-wear protection
Modified logarithmic helical curve type of blade .In light of special need of wear resistance, all blades are mounted with anti-wear protection parts, not only prolonging vehicle life, but also synchronizing the wear of drum and blades.
5.Blade process
Blades are made of special cold-forming pressing molder, welded with drum body by new welding process without obvious trance.
