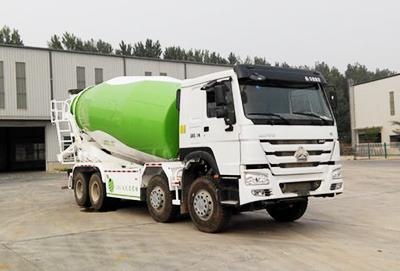

HOWO 12m3 Concrete Mixer Truck
Model No. |
ZZ1317N3261W |
||
Engine |
371HP(EURO II), 380HP(EURO III), 380HP (EURO IV) |
||
Gear Box |
HW19710, 10 forward & 2 reverse |
||
Steering |
ZF8118 hydraulic steering with power assistance |
||
Driving Axle |
HC16, 16 tons double reduction |
||
Cab |
|
||
Wheelbase(mm) |
1800 +3200 +1350 |
||
Tyre |
12.00.R20 Radial tyre,13 units, one spare |
||
Front Axle |
HF9 9000Kgs |
||
Displacement |
9.726L |
||
Overall dimension (L*W*H) |
10150*2496*3950mm |
||
Max speed(km/h) |
90 |
||
Fuel tanker capacity(L) |
300 |
||
Color |
Red, Green, Blue, Yellow, White etc |
||
Brake system |
Service |
Dual circuit compressed air brake |
|
Parking |
Spring energy, compressed air operating on rear wheels |
||
Auxiliary |
Engine exhaust brake |
||
Electrical system |
Battery |
2X12V/165Ah |
|
Alternator |
28V-1500kw |
||
Starter |
7.5Kw/24V |
||
Geometric Volume |
19m3 |
||
Agitating Capacity |
12m3 |
||
Drum rotating |
14° |
||
Agitator rotaion speed |
0-14r/min |
||
Feeding speed |
>3.5m3/min |
||
Water Tank Volume |
400L |
||
Discharge remain ratio |
<0.2% |
