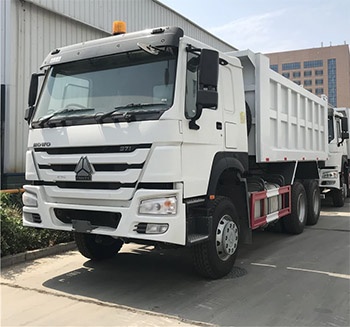

Product name : Brand New Howo Sinotruck 6x4 Drive Dump Truck For Sale
Product No. : ZZ3257N4147W
1 : Horse Power-371
2 : Drive Model-6x4
3 : Payload-35t
4 : Cargo Box Size-5400mmx2500mmx1500mm
5 : Tires-1200R20
Details:
Brand New Howo Sinotruck 6x4 Drive Dump Truck For Sale
DUMP TRUCK | |
Model | ZZ3257N4147W (Left Hand Driving) |
Brand | SINOTRUK–HOWO |
Dimension(L x W x H)(mm) | 8145x2496x3370 |
Cargo body size (Lx W x H) (mm) | 5400x2300x1300 16 m3 |
bottom:8mm, side:6mm | |
Lifting type | Middle Lift |
Approach/Departure angle(°) | 19/26 |
Overhang(front/rear) (mm) | 1500/1739 |
Wheel base (mm) | 3825+1350 |
Max speed(km/h) | 75 |
Curb weight(kg) | 12290 |
Loading Weight(kg) | 30000 |
Fuel tanker capacity(L) | 300 |
Fuel consumption(L/km) | 20-40 L/100 km |
Clutch | Single-plate dry clutch Φ430mm |
Fuel type | Diesel |
Horse Power | 336HP |
Emission | EURO II |
Engine | WD615.69, water-cooled,four strokes,6 cylinders in line with water cooling, turbocharged and intercooling, directly injection |
Transmission | HW19710,10 forwards and 2 reverse |
Service brake | Dual circuit compressed air brake |
Parking brake | Spring energy, compressed air operating on rear wheels |
Auxiliary brake | Egine exhaust brake |
Model | 8118 hydraulic steering with power assistance |
HF9 , Steering with double T-cross section beam | |
HC16, Pressed axle housing, central double reduction with differential locks between axles and wheels | |
Optional | |
Tire | 12.00R20 |
Cab | Right Hand Driving |
Battery | 2X12V/165Ah |
Alternator | 28V-1500kw |
Starter | 7.5Kw/24V |
