Product name : sinotruk howo dump truck price
Product No. : ZZ3257M3647W
1 : Horse power - 290
2 : Drive Model - 6x4
3 : Payload -20t
4 : Cargo Box Size -5400mmx2500mmx1400mm
5 : Tires-12.00R20
←[Previous Product]              [Next Product]→
Details:

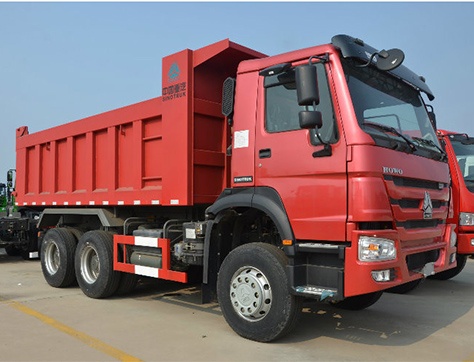

sinotruk howo dump truck price

Advantages For 6x4 SINOTRUK HOWO Dump Truck
1. Heavy duty truck chassis sinotruk howo
2. Reinforced body structure with proven telescopic tipping gear,with front lifthing or middle liffting for option.
3. Combination of driving comfort and power
4. Key pressure point reinforced cargo body
5. Robust powertrain can help you handle any challange at the construction site
6. Stable and reliable under-body tipping device ensures low-gravity hoisting

Truck Model

ZZ3257M3647W, LHD ,RHD both available

Truck Brand

SINOTRUK -HOWO

Dimension(Lx W xH)

8145x2496x3386

Cargo body size (L*W*H, mm)

5400x2300x1400

Cargo body thickness(mm)

bottom:8mm, side:6mm, or customized as you required

Lift type of Carriage

Ventral lifting

Approaching angle/Departure angle(°)

19/26

Overhang(front/rear) (mm)

1500/1739

Wheel base (mm)

3625+1350

Max speed(km/h)

75

Curb weight(kg)

11290

Loading Weight(kg)

25000

Fuel Tanker

300L with locking fuel cap

Fuel consumption(L/100km)

32

Clutch

Single-plate dry clutch Φ430mm

Engine

Model

WD615.87,4- stroke direct injection diesel

engine, 6 cylinders in line with water cooling ,

Horse Power,

290HP

Emission Standard

EURO II

Transmission

Model

HW 19710,10 forwards and 2 reverse

Brake system

Service brake

Dual circuit compressed air brake

Parking brake

spring energy, compressed air operating on

rear wheels

Auxiliary brake

Engine exhaust brake

Steering system

Model

ZF8098/ZF8118 hydraulic steering with power assistance

Front axle

HF9

Rear axle

HC16

Tire

12.00R20

Electrical system

Operating voltage

24V,negative grounded

Starter

24V,7.35KW

Alternator

28V,1500W

Batteries

2*12V.165Ah


howo dump truck assembly line

howo dump truck body




SINO HEAVY VEHICLES CO,.LTD was established in 2002.It is an authorized company of China National Heavy Duty Truck Group Co., Ltd. (hereafter as SINOTRUK ) and specializes in heavy trucks, middle trucks, as well as light trucks, we mainly dealing pro... [View More]
