Heavy load mining truck mine load dump truck HOWO 70ons tipper truck for mining




Heavy load mining truck mine load dump truck HOWO 70ons tipper truck for mining
Advantages:

1,high-duty steel:main beam,side beam and key parts use domestic advanced technology standardlow-alloy and high-strengthsteel.
2,low consumption:light weight cut down fuel use  and save transportation cost.
3,high return:reduce self-weight,increace customer's transportation profit.



Product Description



Machinery Name HOWO off-road mining  dump truck
Driving type 6×4
Chassis No ZZ5707V4048CJ
Cabin HW7D 53° tiltable with A/C and sleeper
Brand SINOTRUK HOWO
Overall dimensions (L×W×H)   mm 8600x3326x3770
Dump body dimensions (L×W×H)   mm 5600x3100x1800
Wheel base(mm) 3600+1500
Tare weight(kg) 12000kg
Rated loading weight (kg) 58000kg
Front axle HF12 Beam boxing type front axle
Rear axle AC26(cast steel 2×26ton hub-reduction axle),
cross-axle diff locks and inter-axle diff locks
Speed ratio :10.47
Axle load 1x6960
2x10300
Max.Driving speed(km/h) 50
Engine Type 4 stroke, direct injection diesel engine, 6 cylinder in-line with water cooling, turbo-charging & inter cooling
Engine Model WD615.96E
Nominal power   kw/(r/min) 276kw;  430hp
Maximum torque   Nm/(r/min) 1500/1100~1600
Emission standard 9.726L
Gearbox HW19710+HW70
Clutch Diaphragm spring clutch, diameter 430mm
Brakes Service brake: dual circuit compressed air brake;
Parking brake:spring enengy, compressed air operating on rear wheels
Auxillary brake: engine exhaust valve brake
Steering gear ZF8098,left, hydraulic steering with power assistance
Forward gears transmission ratio 14.28;  10.62;  7.87;  5.88;  4.38;  3.27;  2.43;  1.8;  1.34;  1
Reverse ratio 13.91;  3.18
Electric system HOWO electric systemminus,24V, minus earth
Fuel tank(L) 500L
Tire 14.00-25NHS,1000±10kPa
front suspension 1500mm;  Half the elliptical leaf spring with shock absorber cavitation
Rear suspension 1000mm;  The overall balance shaft balance suspension, unilateral inclined outfit 4 riding bolt
Color Red,white,green,yellow

Product Photo:

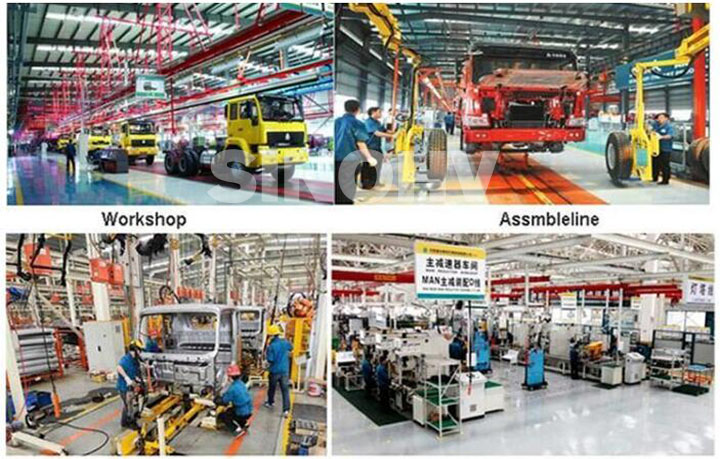

Production line:







1. MOQ: 1 unit
2. Optional payment terms: T/T or L/C
    T/T: 30% deposit by T/T, 70% balance should be paid before shippment.
    L/C: 30% payment advance, 70% L/C at sight.
3. Delivery time: Within 45 days after receiving 30% deposit of T/T

Warranty

1. One year quality guarantee for three key parts axles, engine, transmission or within 60000km, which comes the first.
2. Other spare part could be supplied by OEM at cost prices.
3. Regularly callback to know the vehicle's working status.
4. The overseas engineers are always ready to deal with unexpected needs.
