  • Three Axles Transport Container Detachable Side Wall Semi Trailer
Product name : Three Axles Transport Container Detachable Side Wall Semi Trailer
Product No. : 202022710109
1 : Type-Side Wall Semi Trailer
2 : Payload-30t to 65t
3 : Main beam: Strong type
4 : Landing Gear-28t
5 : Tire-1200R20
←[Previous Product]              [Next Product]→
Details:

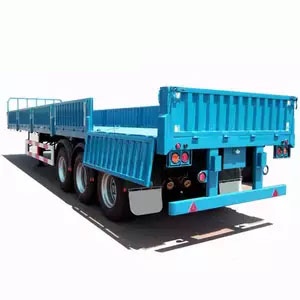

  Three Axles Transport Container Detachable Side Wall Semi Trailer

1. Stake semi trailer suitable for medium and long-distance transportation of medium and heavy goods and bulk goods, such as wood, sand, stone, cement, etc., with strong applicability
2. Steel structure Steel frames are built with top-class hot rolled or rolled steel plate, automatic welded longitudinal beam and adopting advanced sanding and painting process as preliminary treatment.
3. Semi trailer frame adopts automatic submerged arc welding, beautiful weld seam and reliable performance;



Product Name

Three Axles Transport Container Detachable Side Wall Semi Trailer

Tare Weight

4000-6500kg

Loading Weight

35-65T

Dimension

13000*2500*1550mm(Adjustable as your requirements)

Main Beam

Q345B/ST52-3

Height: 500mm

upper plate: 14mm

middle plate: 8mm

Down plate: 16mm

Side Beam

Q235 16# channel steel

Cross Member

Q235 10# channel steel

Platform

3mm diamond platform

King Pin

2 / 3.5 inch bolts type

Twist Lock

12 pieces

Landing Gear

Standard 28ton
Outrigger FUWA / JOST brand
Rim 8.5-20(optional)
Tire 12R22.5
Spare Tire Carriers 2pcs
Suspension System Mechanical suspension / Air suspension
Axle 13T FUWA / BPW Brand
Leaf-spring 90(W)mm*13(Thick)mm*10 Layer
Brake System Dual Line braking system

Brake Air Chamber

Six double chamber
Electrical System 24V, 7core socket

Color and Logo

Optional and customized

Tool Box

2 Standard
