Product name : Sinotruk CDW 1.5T Mini double Cabin Truck
Product No. : SINOHV717SP9C
1 : Horse power - 50hp
2 : Drive Model - 4x2
3 : Payload -1.5t
4 : Cargo Box Size -2300 ×1650×370
5 : Tires-6.00-14
Details:

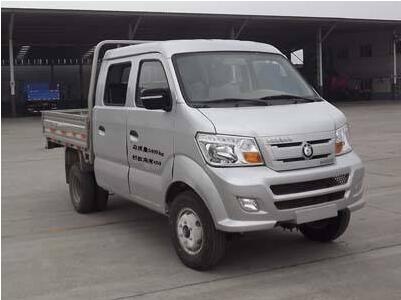

Sinotruk CDW 1.5T Mini double Cabin Truck
|
Model |
717SP9C |
|
|
Overall dimension L*W*H (mm) |
4970×1750×2130 |
|
|
Body inner dimension L*W*H (mm) |
2300 ×1650×370 |
|
|
Wheelbase(mm) |
3050 |
|
|
Curb weight(kg) |
1600 |
|
|
Rated payload(kg) |
1500 |
|
|
Engine |
Model |
CA4DW81-50 |
|
Fuel category |
Diesel |
|
|
Type |
4 cylinders in line, Euro-I emission |
|
|
Displacement(cc) |
2156 |
|
|
Rated power(hp) |
50 |
|
|
Maximum torque(N.m/r/min) |
125 |
|
|
Main performance |
Maximum speed(km/h) |
90 |
|
Maximum climbing ability(%) |
28 |
|
|
Fuel Tank volume (L) |
40 |
|
|

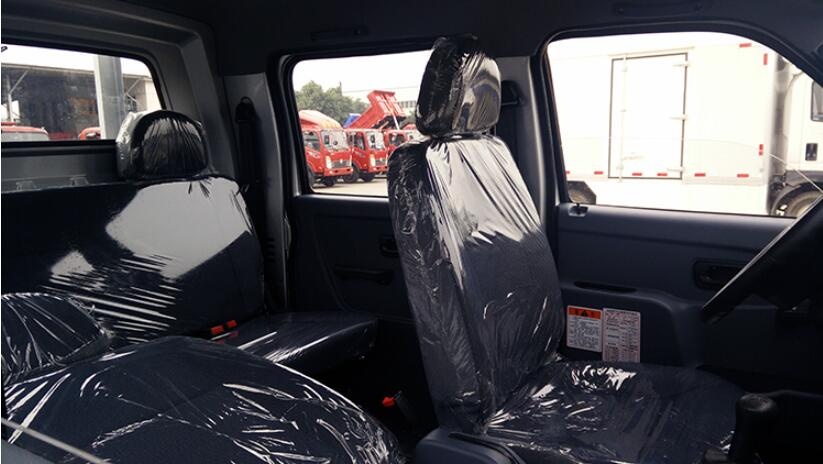

Cabin |
1650 mm double Cabin, Radio+MP3 |
|
|
Seating capacity |
2 persons |
|
|
Transmission |
5 forwards & 1 reverse |
|
|
Brake system |
Hydraulic brake |
|
|
Chassis frame(mm) |
140×5-700 mm |
|
|
Tire |
6.00-14×7 |
|
|
Color |
White, red, blue, yellow, silver |
|
|
Optional |
A/C, Fan heater |
|
|
Others |
Power steering |
|
