  • Howo dump truck 371
Product name : Howo dump truck 371
Product No. : ZZ3257N3647A
1 : Horse power - 371hp
2 : Drive Model - 6x4
3 : Payload - 30t
4 : Cargo Box Size -5400mmx2300mmx1500mm
5 : Tires- 1200R22.5
←[Previous Product]              [Next Product]→
Details:


Howo dump truck 371

1. howo dump truck 371hp  specification

Truck Model ZZ3257N3647A  (LHD)
Dimension(Lx W xH)(unloaded) 8214x2496x3386
Cargo body size (L*W*H, mm) 5400x2300x1400
Cargo body thickness(mm)  bottom:8mm, side:6mm,
Lift type of Carriage  Ventral lifting
Approaching angle/Departure angle(°)  19/26
Overhang(front/rear) (mm) 1500/1739
Wheel base (mm) 3625+1350
Max speed(km/h) 75
Curb weight(kg) 12290
Loading Weight(kg) 30000
Fuel tanker capacity  300L with locking fuel cap
Fuel consumption(L/100km) 32
Clutch  Single-plate dry clutch Φ420mm
Engine Model Model  WD615.47,
(Steyr technology, made in China) Power (kw/rpm) 371HP,247/2200
Emission Standard  EURO II
Transmission  Model HW 19710,10 forwards and 2 reverse
Brake system Service brake Dual circuit compressed air brake
Parking brake spring energy, compressed air operating on rear wheels
Auxiliary brake  Engine exhaust brake
Steering system  Model ZF8098 hydraulic steering with power assistance
Front Axle Loading:9000KG
Rear axle
Color  Optional
Tire  12R22.5   11 pieces
Electrical system Operating voltage 24V,negative grounded
Starter 24V,7.35KW
Alternator 28V,1500W
Batteries 2*12V.165Ah
Cigar-lighter, horn, headlamps, fog lights,
brake lights, indicators and reverse light.
Cab HW76 cab, (one sleeper, with air-condition)



New HOWO dump truck, High Quality , More Lighter,howo dump truck 371 horse power,It is with Durable and long life engine.

High Level Comfortable:Cabin 4 point full -floating air suspension ,adjustable steering wheel with various heightsand angles.air suspension seat, Cruise Constant Speed System,MINI Player .electrical control glass and mirror, manuel Gearbox bunk with AC.

2. howo dump truck 371 assembly line


3. howo dump truck body

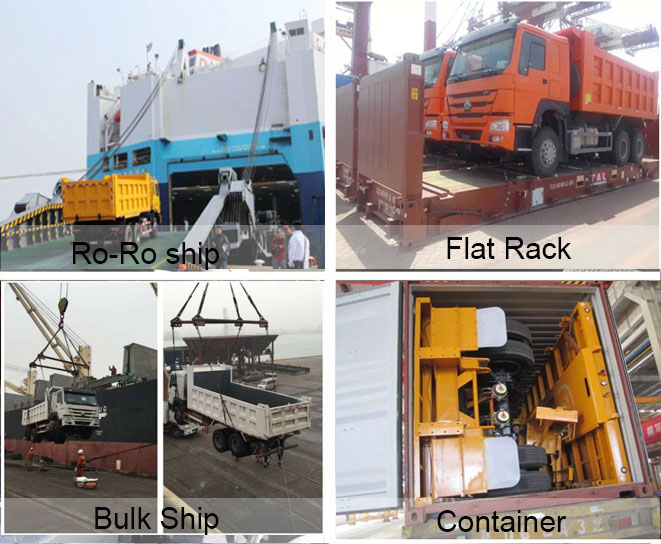

4. Shipment we will take the way like below




 For more trucks you want to learn more about howo dump truck 371 check below video
