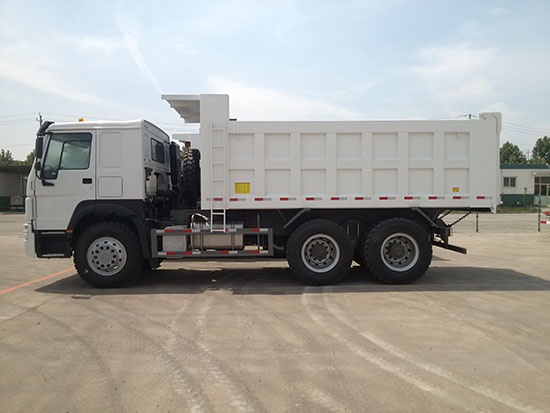

6x4 371hp howo truck

6x4 371hp howo truck
Loading...
  • 6x4 371hp howo truck
Product name : 6x4 371hp howo truck
Product No. : ZZ3257N3647C
1 : Horse power - 371
2 : Drive Model - 6x4
3 : Drive Model - 60t
4 : Cargo Box Size -5200mmx2300mmx1500mm
5 : Tires-12.00R22.5
←[Previous Product]              [Next Product]→
Details:
 6x4 371hp howo truck

Model

6x4 dump truck

Based on Steyr technology

Cabin

Four point s suspension Cabin with spring and air shock absorber, Adjustable steering, Sun cover, Safety belt, short cabin without sleeper

Engine

Type: Diesel 4-stoke Direct injection,6-cylinder in line, Turbo-charging, Inner cooling.

Model:

WD615.47

STEYR technology(CNHTC)



Engine power

371HP/273kW



Displacement(L):

9.726liter (Euro 2 standard)



Max torque:

1450NM@1100-1600rpm



Bore/stoke:

126mm/130mm



Fuel consumption

198g/kW.h

Gear box

CNHTC

Max torque:1900NM



Model:

HW19710



Speed:

10speed, 2reverse

Axle(front/rear)

Front axle

HF9 STEYR technology front steering axle

Tandem

HC16 STEYR technology double reduction hub reductor driving axle

Clutch

D430 diaphragm type clutch

Brake

Service brake: Dual lines air brake



Parking brake: Spring-Power drum brake



Engine brake: Engine exhaust brake(EVB)

Steering

Driver sit at the Left hand side (LHD)

Electric  Equipment



Operating voltage:

24Vnegative grounded



Starter:

24V,5.4KW



Alternator

28V,758W



Battery voltage

12V/135Ah

Frame

Strengthen steel frame, designed according to tough road condition.

Tyre

10+1 spare tyre with rim



12.00R20 radial tyre

Suspension system: Strengthen heavy duty Leaf spring type



Front/Rear

10/12

Dump body:     type of body :

Inside size of Body(mm): 5200x2300x1500, 8mm (floor)x6mm (side), made of high intensity steel

Lifting type: Middle lifter T type hydraulic system

Overall dimension(mm): 7934x2496x3450(Length x width x height)

Wheelbase

3825+1350mm

Track:





Front/Rear

2022/1830/130



Approach/Departure angle

19/23



Front /Rear overhang

1500/1870



Max speed

75km/h

Kerb weight:

12450kg
