  • Tri Axles Side Wall Cargo Stake Transport Semi Trailer
Product name : Tri Axles Side Wall Cargo Stake Transport Semi Trailer
Product No. : 202021194259
Horse power  :
Drive Model :
Payload : 45t
Cargo Box Size :
Tires : 12.00R22.5
←[Previous Product]              [Next Product]→
Details:

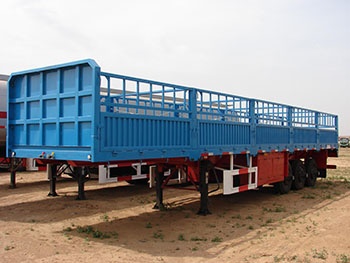

Tri Axles Side Wall Cargo Stake Transport Semi Trailer

Item
Composition
Specifications

Weight
Tare Weight
7.5-14T
Loading Capacity
30T - 90T
Axle weight load
13T/ 16T








Chassis


Main beam
Material is Q345B Steel;
Height: 450mm-520mm;
Upper plate is 14mm-25mm;
Middle plate is 8mm-12mm;
Down plate is 16mm-25mm;
Side beam
14# /16# /18# channel steel
King Pin
2"or 3.5"traction pin
Dimensions(L*W*H)
12500-18000 x 2500-3000 x1500+(1600~1800)mm (adjustable as request)
Floor
3mm/ 4mm diamond steel plate
Side wall
600~1500mm ,you can choose freely

Suspension
Suspension type
Mechanical or Air suspension
Leaf Spring
90(W)mm×13(Thickness)mm×10 layers  or
100(W)mm×12(Thickness)mm×12 layers



Running system
Axle
2/3/4 axles, FUWA, BPW or other optional brand
Wheel Rim
8.00-20,8.5-20,9.0-20,8.25-22.5,9.0-22.5
Wheelbase
7180/6680/6260+1310+1310mm
Tire
Specification: 11.00R20, 12.00R22.5
Number of Tire:8 or12 pieces
Brake system
Brake Chamber
WABCO RE 6 relay valve; T30/30+T30 Spring brake chamber(TKL brand);
Two pieces of 45L air tanks;
Brake system
Dual Line Brake system, ABS is optional

Brake Valve
KTL Brand/WEBCO






Other


Tool box
1 set of standard tool box
Light
LED light Tail lamp with turn signal, brake light & reflector, side lamp etc
Painting
Sand blasting to clean rust completely;
First coat of anticorrosive prime, twice coats of final paint;
Spare Tire Carriers
1 or 2 pieces
Twist lock
4 / 8/12 pcs, Lifting type or Twist Screw type
Landing gear
28T Heavy duty landing gear (Brand Optional)
