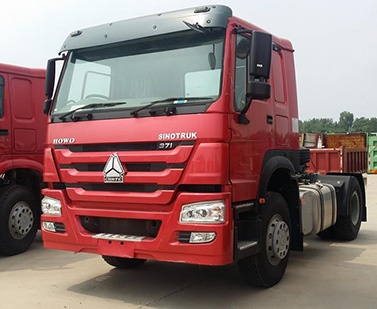

howo 6 wheeler tractor head

howo 6 wheeler tractor head
Loading...
  • howo 6 wheeler tractor head
Product name : howo 6 wheeler tractor head
Product No. : 2019814211536
1 : Horse power - 336hp
2 : Drive Model -4x2
3 : Payload -45t
4 : Fuel tank capacity-400L
5 : Tires-12.00R20
←[Previous Product]              [Next Product]→
Details:
howo 6 wheeler tractor head


Model

ZZ4187M3517 Left Hand Driving

Brand

SINOTRUK-HOWO

Dimension(Lx W xH)(unloaded)(mm)

6110x2496x3563

Approaching/Departure angle(°)

16/42

Overhang(front/rear) (mm)

1500/1110

Wheel base (mm)

3500

Max speed(km/h)

102

Curb weight(kg)

7210

Engine

(Steyr technology)

Brand

SINOTRUK

Model

water-cooled,four strokes,6 cylinders in line,turbocharged, directly injection

Fuel type

Diesel

Horse Power

290HP

Emission

EURO II

Fuel tanker capacity(L)

400L

Transmission

Model

HW13710CL,10-Forward, 2-Reverse

Brake system

Service brake

Dual circuit compressed air brake

Parking brake

spring energy, compressed air operating on rear wheels

Auxiliary brake

Engine exhaust brake with

Steering system

Model

hydraulic steering with power assistance

Front axle

HF7, 7000kg

Rear axle

ST16, 16000kg

Color

Optional

Tire

295/80R22.5

Electrical system

Battery

2X12V/165Ah

Alternator

28V-1500kw

Starter

7.5Kw/24V

Cab

HOWO76 cab, one sleeper, with air conditioner. all-steel forward control, 55ºhydraulically tiltable to the front, 2- arm windscreen wiper system with three speeds, laminated windscreen with casted-in radio aerial, hydraulically damped adjustable driver’s seat and rigid adjustable co-driver’s seat, with heating and ventilating system, outer sun visor, adjustable roof flap, with stereo radio/cassette recorder, safety belts and adjustable steering wheel, air horn, with 4-point support fully floating suspension and shock absorbers


howo 6 wheeler tractor head assembly line

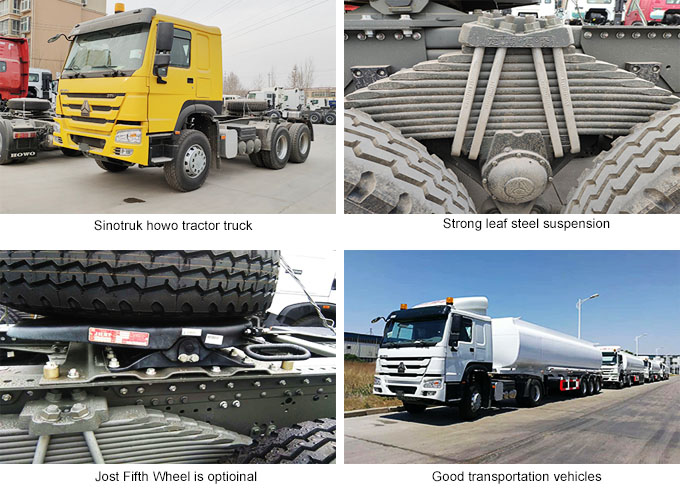

howo sinotruk tractor head details
