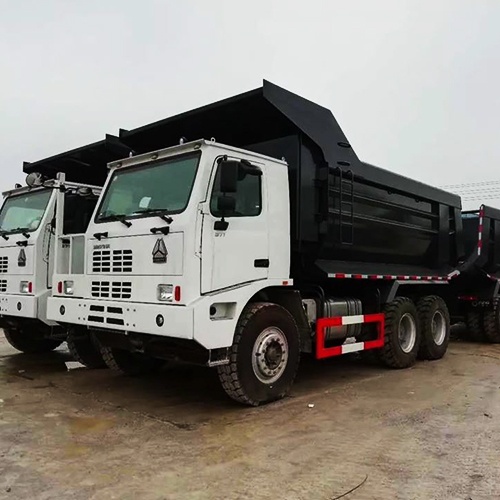

70 ton mining truck howo 420 dump truck

70 ton mining truck howo 420 dump truck
Loading...
  • 70 ton mining truck howo 420 dump truck
Product name : 70 ton mining truck howo 420 dump truck
Product No. : ZZ5707V3640CJ
Horse power  : 420
Drive Model : 6x4
Payload : 70t
Cargo Box Size : 5600mmx2500mmx1800mm
Tires : 14.00-25(36PR)
←[Previous Product]              [Next Product]→
Details:


70 ton mining truck howo 420 dump truck

1. howo 420 dump truck specification



 Cabin  Driving type 6X4   LHD
Model: ZZ5707V3640CJ
SINOTRUK HW7D single side cab,no bunk,left driving,air conditioner
Dimensions 8300×3300×4340 mm
Wheel Base 3600+1500 mm
GVW 70000kg
Rated Load Weight 50000kg
Kerb Weight 20000kg
Engine  Brand Sinotruk
Model D12.42
Type 6-cylinder in line, 4-stroke, water-cooled, turbo-charged & inter-cooled, direct injection
Displacement 11.596L
Bore X Stroke 126x155mm
Horse Power (HP) 420
Emission standard Euro II
Transmission HW19710 transmission,10 forward and 2 reverse with HW70 power take off
Max Speed 46(10.47)/57(8.51) km/h
Tire  14.00-25(36PR) Mining tyre with 1 Spare tire.Option:14.00R25 Mining radial tyre
Oil Tank D type-500L Aluminum alloy fuel tank
Brake System Service brake:dual circuit compressed air brake
Parking brake (emergency brake):spring energy,compressed air operating on rear wheels
Auxiliary brake:engine exhaust valve brake
Electrics Operating voltage:24V,negative grounded
Batteries:2x12 V,165 Ah
horn,headlamps,fog lights,brake lights,indicators and reverse light
Carriage Body The carriage can be heightening
Steel thickness of Carriage floor optional 12/14/16mm
Steel thickness of Carriage side optional 10/12/14mm
Ordinary steel,optional Manganese plate-Mn16,high strength steel
Carriage lifting mode:Front lift,China system and HYVA system.

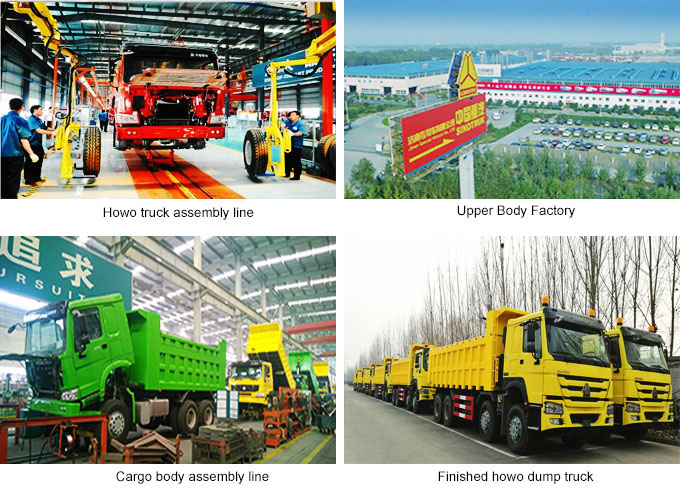

2. howo dump truck assembly line

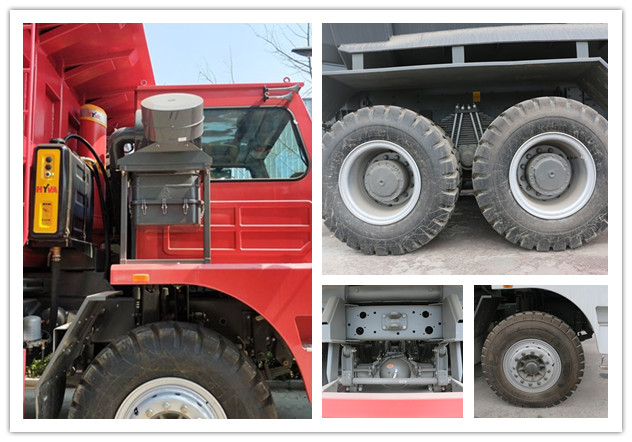

3. howo 420 dump truck body


4. Shipment we will take the way like below



Please contact us right now if you are interested in it.


  For more please check vedio below:
