Product name : Sinotruk 20000 Liters water tanker truck
Product No. : 2018830104448
Price : ZZ1257N4647
1 : Horse power - 380hp
2 : Drive Model - 6x4
3 : Payload -20t
4 : Cargo Box Size -20m3
5 : Tires-1200R22.5
Details:

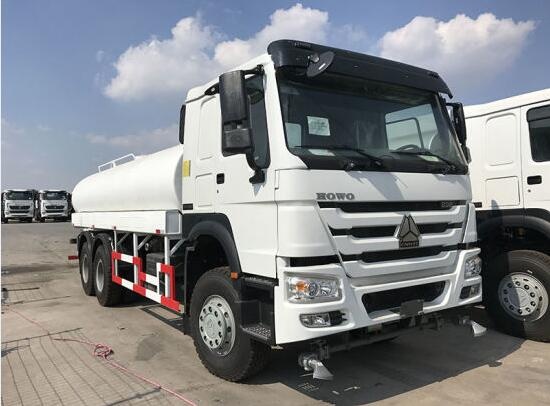

Sinotruk 20000 Liters water tanker truck
SINOTRUK Water Tanker truck
Main Structure and Working Principle

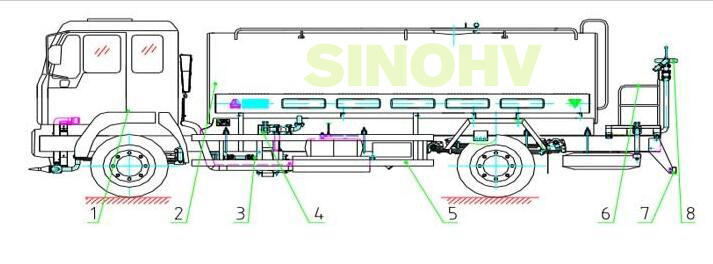

1.Chassis 2.Tanker body 3.PTO&transmission 4.Water system 5.Side protection 6.Rear operating platform 7.Rear bumper 8.Sprayer gun
Tanker Body
The tank body is a metal atmospheric pressure tank body, which mainly has a carbon steel tank and a stainless steel tank, and the carbon steel tank body is treated with anti-corrosion treatment.
The tank has two elliptical and square circles (rectangular arcs). The head is automatically rotated by a CNC rotary machine, which has a beautiful appearance and high strength after molding. The barrel body is made of longitudinal seam butt joints, fully automatic gas shielded welding, and the whole coil is formed after the board is formed. The shape is beautiful and the straightness is good. The barrel and the head are fully welded and butt welded.
The inside of the tank is equipped with a wave-proof plate, and some of the tanks are provided with a longitudinal wave-proof plate to reduce the impact of the liquid in the tank on the head and the barrel.
A sedimentation tank and a sewage outlet are arranged at the bottom of the tank body, and the sewage outlet is opened irregularly according to the situation, and the accumulated dirt in the sedimentation tank is released.

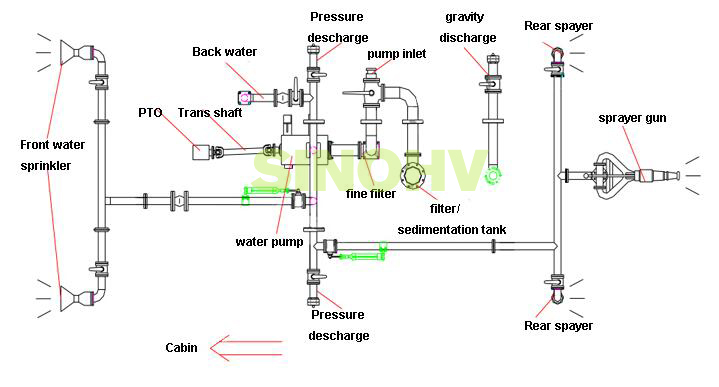

Water system

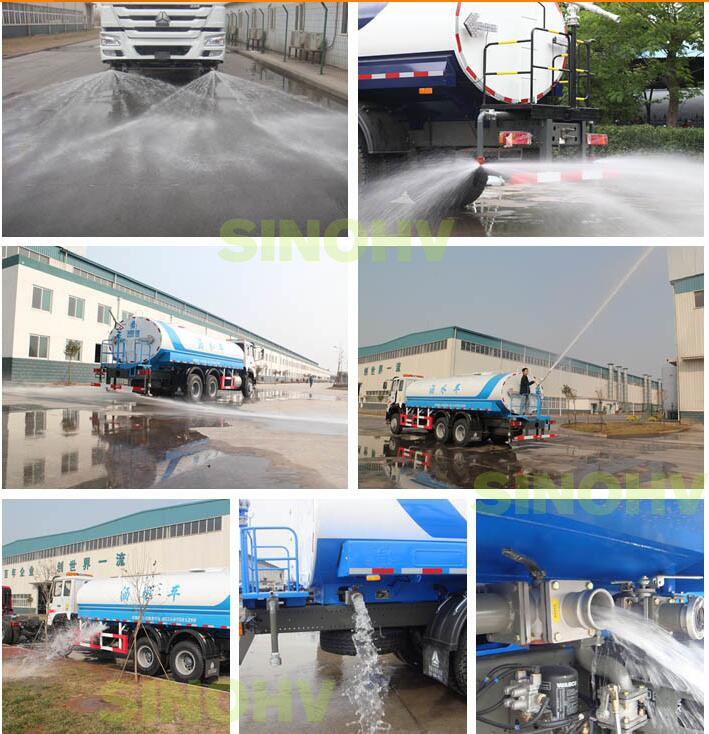

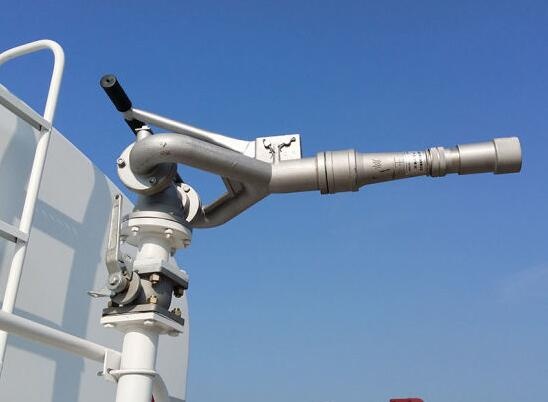

The waterway system mainly consists of a water pump, a front water spray, a high-spray spray gun, a rear sprinkler, a pressure drain, and a self-flowing drain device.
The working principle as follows
| SINOTRUK HOWO 6x4 WATER TANK TRUCK SPECIFICATIONS | |||||
| Manufacture | Made in 2018 year | CNHTC, China | |||
| Cubage | 20000L( other capacity for option ) Pump:Water sprinkling truck dedicated pump, 65QSB-50/110,output 50cbm/h.pump lift 110m. High-pressure water gun shoot,gun range 35m Sprinkling scope:14-18 m |
||||
| Weight in kg | Kerb weight (Kg) | 12590 | |||
| Gross vehicle weight (Kg) | 3000 | ||||
| Dimension | Dimensions | Length(mm) | 10650 | ||
| Width(mm) | 2550 | ||||
| Height(mm) | 3650 | ||||
| Wheel base (mm) | 4600+1350 | ||||
| Performance | Maximum driving speed (km/h) | 92 | |||
| Fuel consumption (1/100 km) | 35 | ||||
| Cab |
Model | SINOTRUK HW76 Lengthen cab | |||
| single bunk,new type seat,adjustable steering wheel,EURO new type heating & ventilating system,German VDO instruments,safety belts, exterior sun visor,stereo radio/cassette recorder,left driving,air conditioner | |||||
| Engine | Model | D12.38-40(Euro 4) | |||
| Type | 6-cylinder in line, 4-stroke, water-cooled, turbo-charged & inter-cooled, direct injection | ||||
| Horsepower | 380hp ( 340hp ,420hp for option ) | ||||
| Maximum output Kw/r/min | 247/2200 | ||||
| Maximum torque N.m/r/min | 1350/1300-1600 | ||||
| Bore x Stroke | 126x130mm | ||||
| Valve | 2 | ||||
| Displacement | 9.726L | ||||
| Make SINOTRUCK (CNHTC), Euro II emission standard, Thermostat with 80ºC opening begin, Rigid fan | |||||
| Transmission | SINOTRUK HW19710 transmission ,10 forward and 2 reverse | ||||
| I II III IV V VI VII VIII IX X | |||||
| 14.28 10.62 7.87 5.88 4.38 3.27 2.43 1.80 1.34 1 | |||||
| R1-13.91 R2-3.18 | |||||
| Clutch | SINOTRUK Φ430 diaphragm-spring clutch,hydraulically operating with air assistance | ||||
| Steering | ZF8118 Steering Gear Box ,hydraulic steering with power assistance.(Left hand driving). | ||||
| Front Axle | SINOTRUK HF9 Front Axle,new 9-ton front axles of equipped with drum brakes. | ||||
| Rear Axles | SINOTRUK HC16 Heavy reduction drive axle,STR hub-reduction with differential locks between wheels and axles, enforced STR axle,ratio:4.8;The basic configuration of HOWO series construction vehicle can be used in such bad environment as bad road condition, heavy impact and overloading, which is the best choice for heavy construction vehicle customers. | ||||
| Brake System | Service brake:dual circuit compressed air brake Parking brake (emergency brake):spring energy,compressed air operating on rear wheels |
||||
| Wheels & Tyres | Rims:10 hole-steel ;Tyres:12R22.5 tubeless tyre with 1 Spare tire.( other for option ) | ||||
| Electrics | Operating voltage:24V,negative grounded Starter:24V,7.5 Kw Alternator:3-phase,28V,1500 W Batteries:2x12 V,165 Ah horn,headlamps,fog lights,brake lights,indicators and reverse light. |
||||
| Oil Tank | Square type-400L Aluminum alloy fuel tank | ||||
| OPTIONS | Revolving Light on roof of cab | ||||
| Upper body | volume: 4000L - 35000L | ||||
| Sprinkler, sprayer option | |||||
| Rear operating platform: unequipped | |||||
| Tires: 12R22.5 , 315/80R22.5 , 13R22.5 tubeless , 12.00R20 radial etc | |||||
| ABS, EVB engine brake, | |||||
SINOTRUK Water Tanker truck
Main Structure and Working Principle
1.Chassis 2.Tanker body 3.PTO&transmission 4.Water system 5.Side protection 6.Rear operating platform 7.Rear bumper 8.Sprayer gun
Tanker Body
The tank body is a metal atmospheric pressure tank body, which mainly has a carbon steel tank and a stainless steel tank, and the carbon steel tank body is treated with anti-corrosion treatment.
The tank has two elliptical and square circles (rectangular arcs). The head is automatically rotated by a CNC rotary machine, which has a beautiful appearance and high strength after molding. The barrel body is made of longitudinal seam butt joints, fully automatic gas shielded welding, and the whole coil is formed after the board is formed. The shape is beautiful and the straightness is good. The barrel and the head are fully welded and butt welded.
The inside of the tank is equipped with a wave-proof plate, and some of the tanks are provided with a longitudinal wave-proof plate to reduce the impact of the liquid in the tank on the head and the barrel.
A sedimentation tank and a sewage outlet are arranged at the bottom of the tank body, and the sewage outlet is opened irregularly according to the situation, and the accumulated dirt in the sedimentation tank is released.
Water system
The waterway system mainly consists of a water pump, a front water spray, a high-spray spray gun, a rear sprinkler, a pressure drain, and a self-flowing drain device.
The working principle as follows
