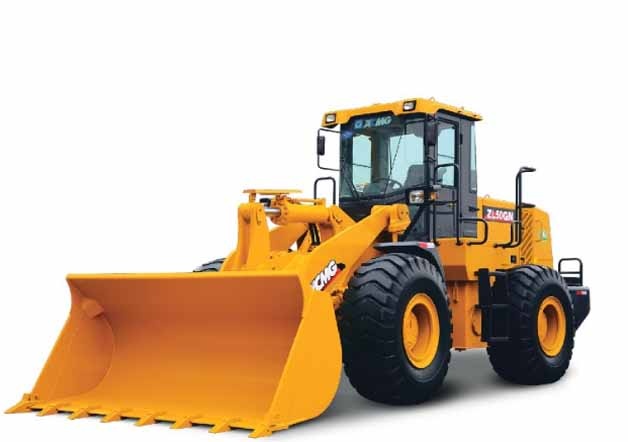

XCMG Machinery Wheel loader ZL50GN

XCMG Machinery Wheel loader ZL50GN
Loading...
  • XCMG Machinery Wheel loader ZL50GN
Product name : XCMG Machinery Wheel loader ZL50GN
Product No. : ZL50GN
1 : Horse power - 220hp
2 : Bucket capacity-3m3
3 : Payload -5T
4 : Operating weight-18t
5 : Tires-23.5-25
←[Previous Product]
Details:

  XCMG Machinery Wheel loader ZL50GN



Description

Specification

unit

Rated load

5000kgs or 11000lbs

kg

Raising time

<6

s

Total cycling time

<11

s

Max. traction force

145

kN

Articulation angle

35

°

Min. turning radius

6400

mm

Grade-ability

28

°

Wheel base

3300

mm

Track

2200

mm

Speed

1st(F/R)

11.5/16.5

km/h

2nd(F/R)

37

km/h

Engine model

SC11CB220G



Rated power/rated speed

162KW/2200r/min(220HP/2200r/min)



Tires

23.5-25



Working Equipment part

Clamp

Min. clamping diameter

450/800

mm

Dump clearance

3230

mm

Dump reach

1845

mm

Overall dimension (LxWxH)

8414×2800×3460

mm

Operating weight

18

t

Side dump

Bucket capacity

2.3

m3

Dump clearance(Downward/side)

3025/3957

mm

Dump reach(Downward)

1192

mm

Max. breakout force

172

kN

Overall dimension (LxWxH)

8227×3000×3460

mm

Operating weight

19.2

t

Bucket

Bucket capacity (standard)

3.0 (standard)

m3

Dump clearance (Downward/side)

3090

mm

Dump reach (downward)

1130

mm

Max. breakout

170

kN

Overall dimension (LxWxH)

8110×3000×3460

mm

Operating weight

18

t
